EXPLAINING THE "PEROXIDE EFFECT" IN THE REACTION BETWEEN HYDROGEN BROMIDE AND ALKENES



This page guides you through the mechanism for the free radical addition of hydrogen bromide to alkenes - often known as the "peroxide effect".


Note:  If you just want the facts and mechanism with a minimum of discussion you will find them by following this link.



Free radical addition to a carbon-carbon double bond

If you have read the introductory page (see above), you will know that hydrogen bromide adds to the carbon-carbon double bond in alkenes via a free radical mechanism in the presence of organic peroxides or oxygen from the air.

Oxygen reacts slowly with alkenes to produce small amounts of organic peroxides, so we don't need to look at that as a separate case.

We'll start by looking at the general case without worrying about what is attached at either end of the carbon-carbon double bond.


The function of the organic peroxides - chain initiation

Organic peroxides are compounds containing an oxygen-oxygen single bond, and are commonly given a general formula R-O-O-R.

The "R" groups can be quite complicated and aren't necessarily just simple alkyl groups.

The oxygen-oxygen bond is quite weak, and breaks easily so that each oxygen gets a single electron. Free radicals are formed.

If these free radicals collide with a hydrogen bromide molecule, a hydrogen atom is transferred, breaking the hydrogen-bromine bond to produce bromine radicals.


Chain propagation

In any alkene (like ethene, for example), the two pairs of electrons which make up the double bond aren't the same. One pair is held securely on the line between the two carbon nuclei in a bond called a sigma bond. The other pair is more loosely held in an orbital above and below the plane of the molecule known as a pi bond.


Note:  It would be helpful - but not essential - if you read about the structure of ethene before you went on. If the diagram above is unfamiliar to you, then you certainly ought to read this background material.

Use the BACK button on your browser to return to this page.

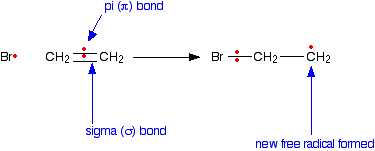

Imagine what happens if a free radical approaches the pi bond in an alkene. Once again, we'll draw it as if it is ethene - but it would apply to any case.

The bromine radical uses one of the electrons in the pi bond to help to form a new bond between itself and the left hand carbon atom. The other electron returns to the right hand carbon.


Note:  Don't worry that we've gone back to a simpler diagram. It is perfectly adequate for this discussion.


The sigma bond between the carbon atoms isn't affected by any of this.

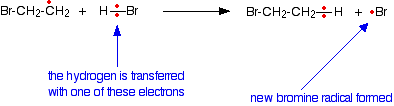

Now this new free radical reacts with a hydrogen bromide molecule. It takes a hydrogen atom from it, leaving another bromine radical.

The bromine radical can then react with another carbon-carbon double bond, which eventually produces a new bromine radical - and so on, and so on . . . There is a chain reaction.


Chain termination

The chain will be broken when any two radicals happen to hit each other and form a new bond using both of the single electrons. Removing a free radical from the system without producing a new one immediately stops that particular chain.


What happens if the alkene is unsymmetrical?

Unsymmetrical alkenes?

An unsymmetrical alkene is one like propene, CH3CH=CH2. At one end of the double bond there is a CH3 group and a hydrogen atom. At the other end there are two hydrogen atoms.

A question of orientation

The problem with these unsymmetrical alkenes is that you could get two different products depending on which end of the bond the hydrogen and the bromine add.

In fact, under free radical conditions, most of the product is 1-bromopropane.

This happens because when the bromine radical attacks the pi bond, it joins to the carbon atom at the CH2 end of the double bond rather than the CH end.

Why does the bromine add this way?

You might think that there would be an equal chance of it attaching to either end, but where it attaches is controlled by the stability of the free radical formed. The more stable radical will be formed more quickly.

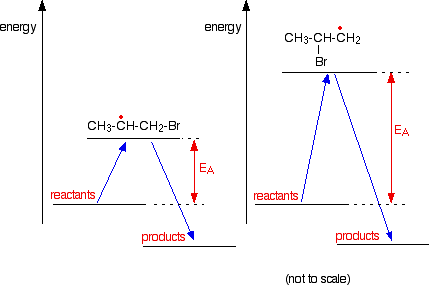

Think of this in terms of activation energy.

The activation energy will be lower for the reaction where the bromine attaches to the end carbon because the radical produced is more energetically stable.

The stability of various sorts of radicals

What matters is the number of carbon atoms attached to the carbon with the single electron.

Looking at the simplest possibilities:

Tertiary radicals are more stable than secondary ones, and secondary radicals are more stable than primary.

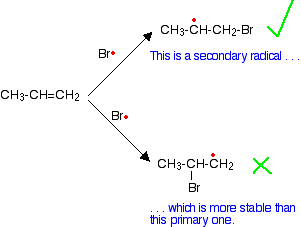

In the case of a bromine radical attacking the double bond in propene, it forms a secondary radical rather than a primary one because it is more stable.


Note:  The order of stability of the various tertiary, secondary and primary free radicals exactly reflects the order of stability of carbocations (carbonium ions).

If you are interested in following this link, use the BACK button on your browser to return to this page.



The rest of the reaction

Once the bromine has attached to the carbon to form the secondary radical, there is nothing different about the rest of the reaction. The new radical takes a hydrogen from a hydrogen bromide molecule.

This produces the 1-bromopropane and a bromine radical.

The bromine radical now goes into another cycle exactly as before to continue the chain reaction.


Questions to test your understanding

If this is the first set of questions you have done, please read the introductory page before you start. You will need to use the BACK BUTTON on your browser to come back here afterwards.

questions on the peroxide effect

answers
